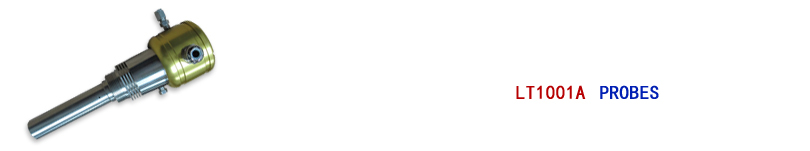

LT1001A Heated Zirconia probe is to measure a variety of fuel boiler, furnace, annealing furnace, pit furnace, carburizing furnaces, waste incineration furnace, sintering furnace oxygen content of oxygen-line detection of the probe.
 LT, China and Canada oxygen probe as a co-production, the core components using the world's leading imported components and structures.
 high measurement precision, the signal does not drift, long service life, maintenance-free, corrosion resistance, anti-high water.
 widely used in boiler, furnace, annealing furnace, furnace, pit furnace, carburizing furnaces, waste incineration furnace, sintering furnace, etc.. In energy, metallurgy, cement production, petrochemicals, electronics, welding, paper, glass products manufacturing industry, cigarette manufacturing and other industries need to measure the oxygen can be applied on the industry..
 LT1001A oxygen probe in high-dust-fired and high-corrosive waste incinerator on a unique anti-corrosion.
 No check gas check, in full compliance with Knight curve formula.
 LT series of products are modular assembly, replacement parts may at any time without having to replace the entire branch probe.
 LT products provide life-long maintenance and technical service support, replacement parts only fees collected.



LT1001A Zirconia probe specifications
Application temperature range	0 -800 ℃
Probe length	100-2000mm
Installation	1 1 / 2 "BSP or NPT 3 / 4", 1 "BSP or NPT
Filter diameter	42 mm with 19mm steel shell type
Electrical connection	Direct plug socket type or airline seat, or explosion-proof
Heater	Yes
Thermocouple	Model K-type
Response time	<4 seconds
Probe head temperature	<130 ℃
Reference gas	With ambient air 50cc/min instrument for the pump
Reference Gas Connection	1 / 4 "pipe (PVC) pipe within the cable
Filter type	Removable stainless steel
Calibration Gas Connection	1 / 8 "NPT thread 1 / 16" NPT thread
Weight	0.6Kg plus 0.33Kg / 100mm length
